What is a Foam Suppression System?

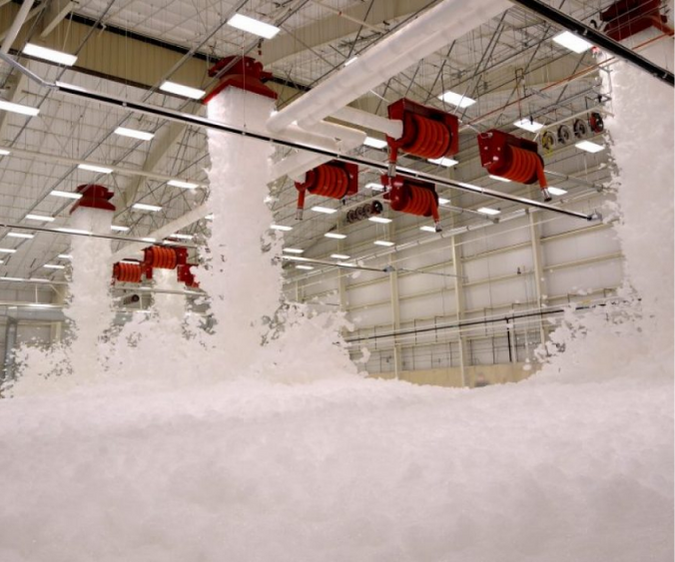

Fire suppression foam is composed of foam concentrate, water, and air. When properly mixed, these components create a uniform foam blanket that extinguishes flames through cooling, vapor suppression, smothering, and by isolating the fuel surface from the flame. This makes foam systems highly effective for protecting against flammable and combustible liquid fires
Foam bladder tank
- Foam Bladder Tank Specifications
Body Material: Carbon steel
Valve Material: Stainless Steel 304
Capacity: 500–10,000 L (130–2,650 gallons)
Flow Range: 4–200 L/s (63–3,175 GPM)
Working Pressure: 0.6–1.2 MPa (6–12 bar)
Type: Horizontal and Vertical configurations
Mixing Ratio: 3% or 6%
Size of Proportioner: DN80–DN250 (3″–10″)
Accessories: Mixer, Level Indicator
Application
The unit usually constitutes foam spray system and low/high expansion foam extinguishing system with pipelines, foam generators and foam nozzles. This unit provides foam solution for these systems through pipelines which are distributed in all destination areas and they are connected with generators or foam nozzles. The system works once there is fire somewhere and solution was transported to destination area through pipelines. Thus destination area gets foam solution to put out fire with foam generators or foam nozzles.
OUR BRANDS
Typical Areas of Fire Protection
Foam suppression systems are suitable for use in the following hazard types:
